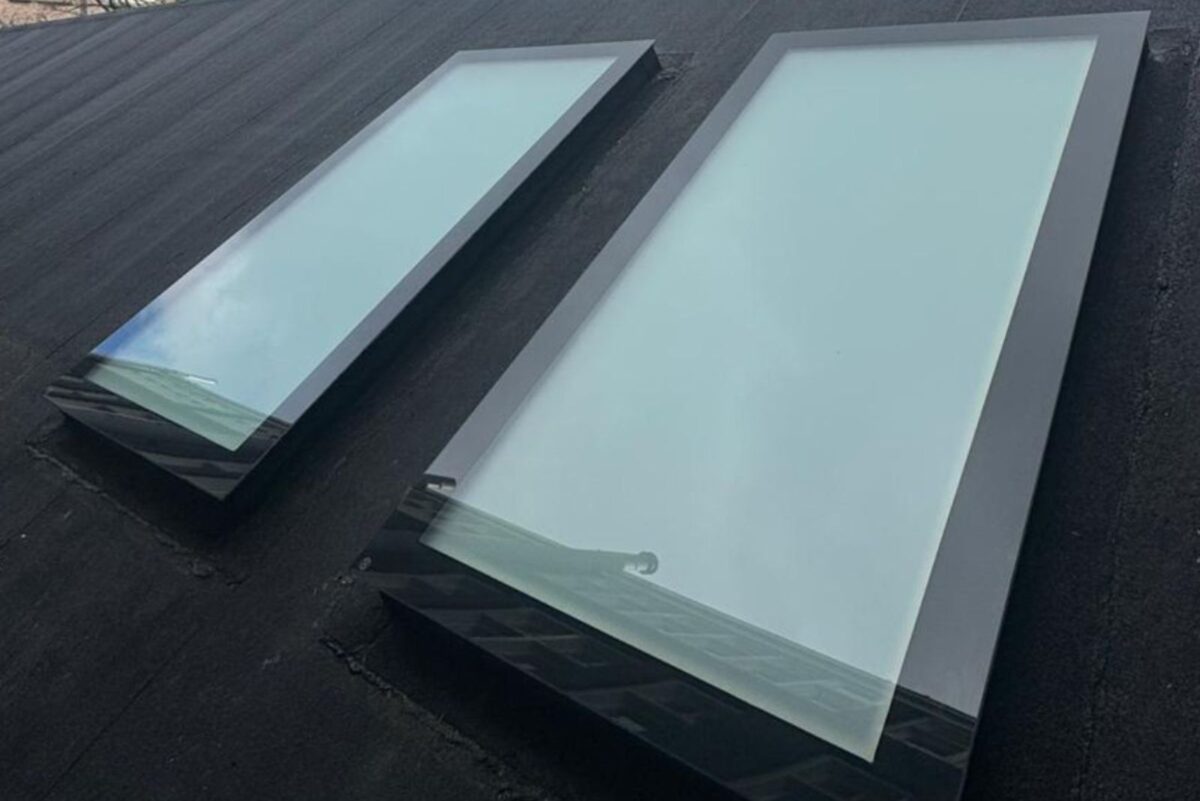

Pitched Roof Skylight / Rooflight 1200 x 1200 mm
Our pitched roof skylights are manufactured to the highest standard making them frameless from the inside and out. They are easily installed with lead flashing, that’s cut on site that is suitable for all roofs. As they are frameless internally they let in more light.
This high-performance, a non-opening frameless skylight is triple glazed with 6mm toughened, self-cleaning glass and a U Value of only 0.9 W/m²K. The internal quoted glass size is 1200 x 1200 mm, see the structural diagram below.
When purchasing a pitched roof skylight for a tiled roof from us it it very simple.
All our skylight come triple glazed as standard and have solar protection.
The up stand is formed with the same opening as you can see on our drawings.
All you need to add is the flashing of your choice in our accessories section.
The flashing is then wrapped around your up stand sealing the up stand to your roof tiles.
Make sure you have added the right amount of flashing, the full circumference of your skylight will require flashing.
Our rolls come in 7.5 meter lengths. Lets say you have bought a 1000 x 2000mm skylight you then require a total of 6 meters as you have 2x 1 meter sides and 2x 2 meters becoming a total of six lineal meters therefore one rolls of flashing will be require.
Glazing Type: Triple Glazed
Internal Glass Size (QUOTED): 1200 x 1200 mm
External Glass Size: 1400 x 1400 mm
Top Glass Pane: 6mm BS EN 12150 Thermally Toughened Glass
Spacer Type: 15mm Black Warm Edge
Air Gap: 15mm 90% Argon Filled
Middle Glass Pane: 4mm BS EN 12150 Thermally Toughened Glass
Bottom Glass Pane: 44.2 Low E; BS EN 14449 Laminated Glass
U Value: 0.9 W/m²K
Net Weight: 72.60kg
UV Protected: YES
When it comes to choosing a roof light for your home, we know that safety is an important deciding factor.
This product conforms to British Standards & Building Regulations and has all Safety Markings.
It is CE marked which is a certification mark that indicates conformity with the relevant EU directives and standards for products sold within Europe.
Our Skylights can be installed at a maximum pitch of 45 degrees.
