TRIPLE GLAZED SKYLIGHT 500 x 500 mm

(3 customer reviews)

£212.68 incl. VAT

Details:

* Glazing Type: Triple Glazed
* Internal glass size: 500 x 500 mm
* U Value: 0.9 W/m²K
* G Value: 58%
* Noise-proofing value: 39 dB
* Free delivery within London (M25)
* Nationwide Delivery
* 20-Year Warranty

PDFs for Download:

42 in stock

-
+
£208.00 incl. VAT
-
+
£34.41 incl. VAT
-
+
£19.38 incl. VAT
-
+
£16.09 incl. VAT
-
+
£19.30 incl. VAT
Weight 14.85 kg
Dimensions 75 × 10 × 75 cm
Brand

Saris-Extensions

Manufacturer

Saris-UK Ltd

Color

Clear

Size

500x500mm

Description

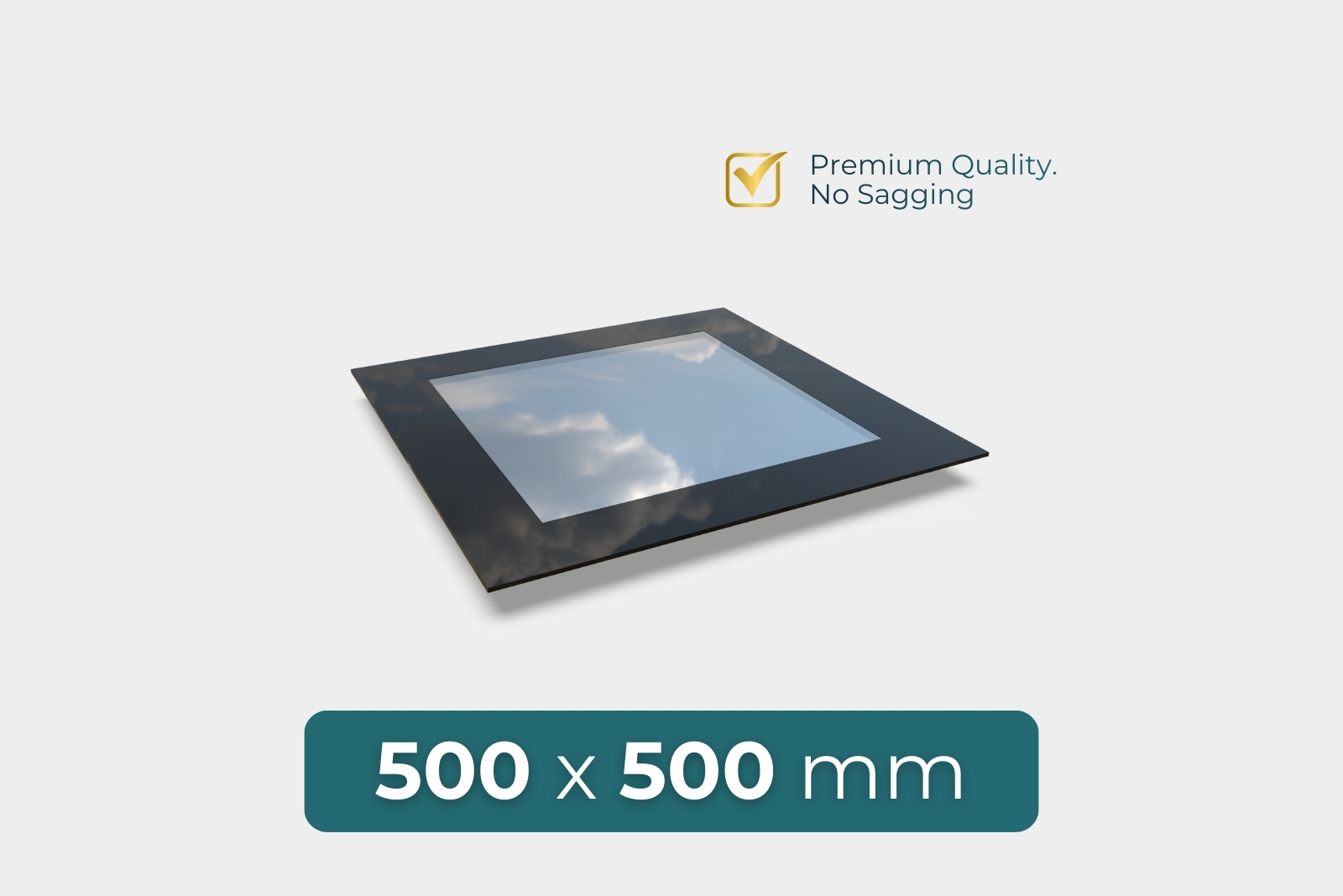

Triple Glazed Skylight / Rooflight 500 x 500 mm

This high-performance, a non-opening frameless skylight is triple glazed with 6mm toughened, self-cleaning glass and a U Value of only 0.9 W/m²K.
The internal quoted glass size is 500 x 500 mm, see the

structural diagram below.

Our Flat Roof Skylights are composed of three distinct layers, each contributing to the unit’s durability and thermal efficiency:

Top Layer: 6mm BS EN 12150 Thermally Toughened Glass

Middle Layer: 4mm BS EN 12150 Thermally Toughened Glass

Bottom Layer: 44.2 Low E;  BS EN 14449 Laminated Glass


  • Glazing Type: Triple Glazed
  • Internal Glass Size (QUOTED): 500 x 500 mm
  • External Glass Size: 700 x 700 mm
  • Top Glass Pane: 6mm BS EN 12150 Thermally Toughened Glass
  • Spacer Type: 15mm Black Warm Edge
  • Air Gap: 15mm 90% Argon Filled
  • Middle Glass Pane: 4mm BS EN 12150 Thermally Toughened Glass
  • Spacer Type: 15mm Black Warm Edge
  • Air Gap: 15mm 90% Argon Filled
  • Bottom Glass Pane: 44.2 Low E;  BS EN 14449 Laminated Glass
  • U Value: 0.9 W/m²K
  • G Value: 58%
  • Net Weight: 14.85kg
  • Self-Cleaning: YES
  • UV Protected: YES
  • Clear Tint

Safety and Compliance: Choosing the Right Skylight

When it comes to choosing a roof light for your home, we know that safety is an important deciding factor.

This product conforms to British Standards & Building Regulations and has all Safety Markings.

It is CE marked which is a certification mark that indicates conformity with the relevant EU directives and standards for products sold within Europe.

Our Skylights can be installed at a maximum pitch of 45 degrees.

Installation Specifications and Recommendations:

  • Internal Dimensions: It's important to note that the top pane of glass includes a black border, extending the external dimensions of the unit by 200 millimetres in each direction.
  • Creating the Opening: When preparing for installation, allow an additional 10 millimetres internally from upstand to upstand for proper fitting. For example, for a 600 by 900 unit, the opening should be 610 by 910 millimetres internally.
  • Upstand Construction: We recommend constructing the upstand (the wooden framework housing the skylight) using two-by-one or two-by-two-inch timbers.
  • Foam Rope and Sealant Use: For optimal installation, install foam rope on top of the internal supporting baton, which helps level out weight discrepancies and stress on the glass. We advise using Dowsil 791 black-coloured sealant to create a watertight perimeter around your upstand. Please note that acrylic sealants are not compatible with our units and should not be used.

Find Your Perfect Fit with Our Custom Size Skylight Calculators

Choose our skylights for a superior, clear, and comfortable living environment.

At Saris-Extensions, our Flat Roof Skylights are more than just an architectural feature; they are a fusion of advanced technology, energy efficiency, and sleek design.

Best Price
20 Years Warranty
Guarantee Payment Safety
Self Cleaning
Clear Tint
UV Protected
Free Delivery within London (M25)
Аll Glass Panels
Safety Toughened and Laminated Glass
Made In EU
London Based Stock
Quick and easy installation
Step By Step installation guide
24/7 technical helpline
